37°C Temperature Chamber
Download
Temperature range
- 37°C
Components
- Temperature chamber
- Temperature controller
Advantages
- Controlled temperature range
- High-accuracy sensors
- Interface to testXpert III
Industries
- Medical
Advantages & features

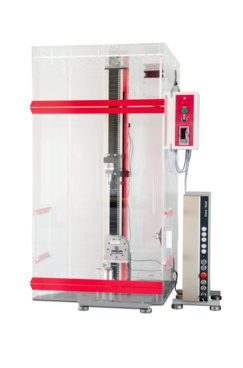

ZwickRoell's 37°C temperature chambers represent an alternative for more complex temperature chambers if only ambient temperatures up to 37°C need to be controlled. This allows you to use specimen grips you have available.
- Controlled temperature (ambient temperature up to 37°C)
- Relative humidity in the temperature chamber can be controlled from ambient humidity up to 90% relative humidity
- Combined sensor for temperature and humidity
- Interface for recording sensor data in testXpert III testing software
Technical overview
| Description | Value | |
| Type | Temperature chamber 37°C | |
| Item No. | 086406 | |
| Dimensions | ||
| Temperature chambers | ||
| Height | 1260 | mm |
| Width | 650 | mm |
| Width (with controller) | 780 | mm |
| Depth | 750 | mm |
| Nominal temperature | +37 | °C |
| Chamber temperature, max. | +37 | °C |
| Chamber temperature | +35 | °C |
| Accuracy | ±1 | K |
| Heating time | <60 | min |
| Power supply voltage | 230 | V |
| Power frequency | 50/60 | Hz |
| Interfaces | ||
| Power supply connection | IEC plug | |
| Power cable | 3 m, IEC socket/Schuko plug | |
| Heating | ||
| Air circulating heater with fan, power | 400 | W |
| Connection cable | Cable with IEC plug | |
| Data transmission via | RS232 serial port | |
| Ambient temperature | +10 ... +30 | °C |
| Air humidity | 20 ... 90 | % |
| Weight, approx. | 48 | kg |
