Used Tensile Testers Z010, Z020, Z050, Z100
All of our used tensile testers meet the same standards of a new machine; they are fully refurbished and updated with the latest technology. Refurbished testing machines are not only delivered including the latest version of our testXpert testing software, they are also fully compatible with our comprehensive ZwickRoell accessories portfolio.
Our best selling used tensile testers are AllroundLine models Z010, Z020, Z050 and Z100. The main differences among the various models are the force level and test area size of the machine.
Z010 - up to 10 kN Z020 - up to 20 kN Z050 - up to 50 kN Z100 - up to 100 kN
Interested in purchasing a refurbished testing machine? Our second hand testing machine portfolio changes nearly on a daily basis and includes not only tensile testers but also preowned impact testing machines, fatigue testing machines, and more. We will be happy to help you determine the perfect used testing machine for your specific needs.
Used tensile tester Z010
The Z010 from ZwickRoell is part of the AllroundLine family. With a force level of 10 kN, the Z010 is ideal for all universal tests in a smaller force range. The ZwickRoell Z010 (formerly Zwick Z010) is most commonly used for tensile tests, compression tests or flexure tests.
Our used machine market features a consistent inventory of preowned Z010 tensile testers in a force range of 10 kN.
| Z010 TN1) | Z010 TH2) | Z010 TE3) | Z010 TNW4) | Z010 THW5) | Z010TEW6) | |
|---|---|---|---|---|---|---|
| Test load (kN) | 10 | 10 | 10 | 10 | 10 | 10 |
| Test area height (mm) | 1030 | 1430 | 1785 | 1000 | 1400 | 1755 |
| Crosshead speed vmin ... vmax | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 |
| Compliance (10-6 mm/N) | 31 | 31 | 31 | 34 | 34 | 34 |
| Stiffness | 64 | 64 | 64 | 48 | 48 | 48 |
| 1) TN= table-top testing machine with standard test-area width and height |
| 2) TH= table-top testing machine with higher test area |
| 3)TE= table-top testing machine with extra high test area |
| 4)TNW= table-top testing machine with standard test-area height and wide width |
| 5) THW= table-top testing machine with high and wide test area |
| 6) TEW= table-top testing machine with extra high and wide test area |
Used tensile tester Z010
Used tensile tester Z010
Used tensile tester Z010
Used tensile tester Z020
As part of the AllroundLine family, the used tensile tester Z020 (formerly Zwick Z020) is used for small to medium specimen elongation. The table-top testing machine Z020 is designed for quasi-static tests in tensile and compression directions, with continuous, static, pulsating or cyclic load.
We have a constant stock of refurbished AllroundLine Z020 testing machines in the 20 kN force range as part of our used machine inventory.
| Z020 TN1) | Z020 TH2) | Z020 TE3) | Z020 TNW4) | Z020 THW5) | Z020 TEW6) | |
|---|---|---|---|---|---|---|
| Test load (kN) | 20 | 20 | 20 | 20 | 20 | 20 |
| Test area height (mm) | 1030 | 1430 | 1785 | 1000 | 1400 | 1755 |
| Crosshead speed vmin ... vmax | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 | 0.0005-30000 |
| Compliance (10-6 mm/N) | 29 | 29 | 29 | 32 | 32 | 32 |
| Stiffness (kN/mm) | 65 | 65 | 65 | 47 | 47 | 47 |
| 1) TN= table-top testing machine with standard test-area width and height |
| 2) TH= table-top testing machine with higher test area |
| 3)TE= table-top testing machine with extra high test area |
| 4)TNW= table-top testing machine with standard test-area height and wide width |
| 5) THW= table-top testing machine with high and wide test area |
| 6) TEW= table-top testing machine with extra high and wide test area |
Used tensile tester Z020
Used tensile tester Z020
Used tensile tester Z050
Ergonomics and operability are top priority with the AllroundLine Z050, and we achieve both through flexible adaptation of the work area thanks to adjustable support legs and low base height.
Whether for tensile testing, compression testing, flexure testing or shear, tear growth, adhesion or customer specific tests, the Z050 table-top testing machine can be used for any application.
Next to models Z010, Z020 or Z100, we have a constant inventory of used and refurbished Z050 AllroundLine testing machines for a force range up to 50 kN. Depending on the application, a used Z050 can be equipped with screw grips, pneumatic grips or hydraulic grips. A wide range of extensometers, from sensor-arm to non-contact, offers the right solution for your test requirements.
Technical data Z050
The Z050 is available in different heights and widths. The TN and THN versions are only available for models Z005, Z010 and Z020, because for tests in a higher force range, a higher and/or wider test area is required. Thus, the Z050 model with the different load frame sizes and the extra high test area, offers the best conditions for tests on materials such as rubber, for example.
| 1) TN= table-top testing machine with standard test-area width and height |
| 2) TH= table-top testing machine with higher test area |
| 3)TE= table-top testing machine with extra high test area |
| 4)TNW= table-top testing machine with standard test-area height and wide width |
| 5) THW= table-top testing machine with high and wide test area |
| 6) TEW= table-top testing machine with extra high and wide test area |

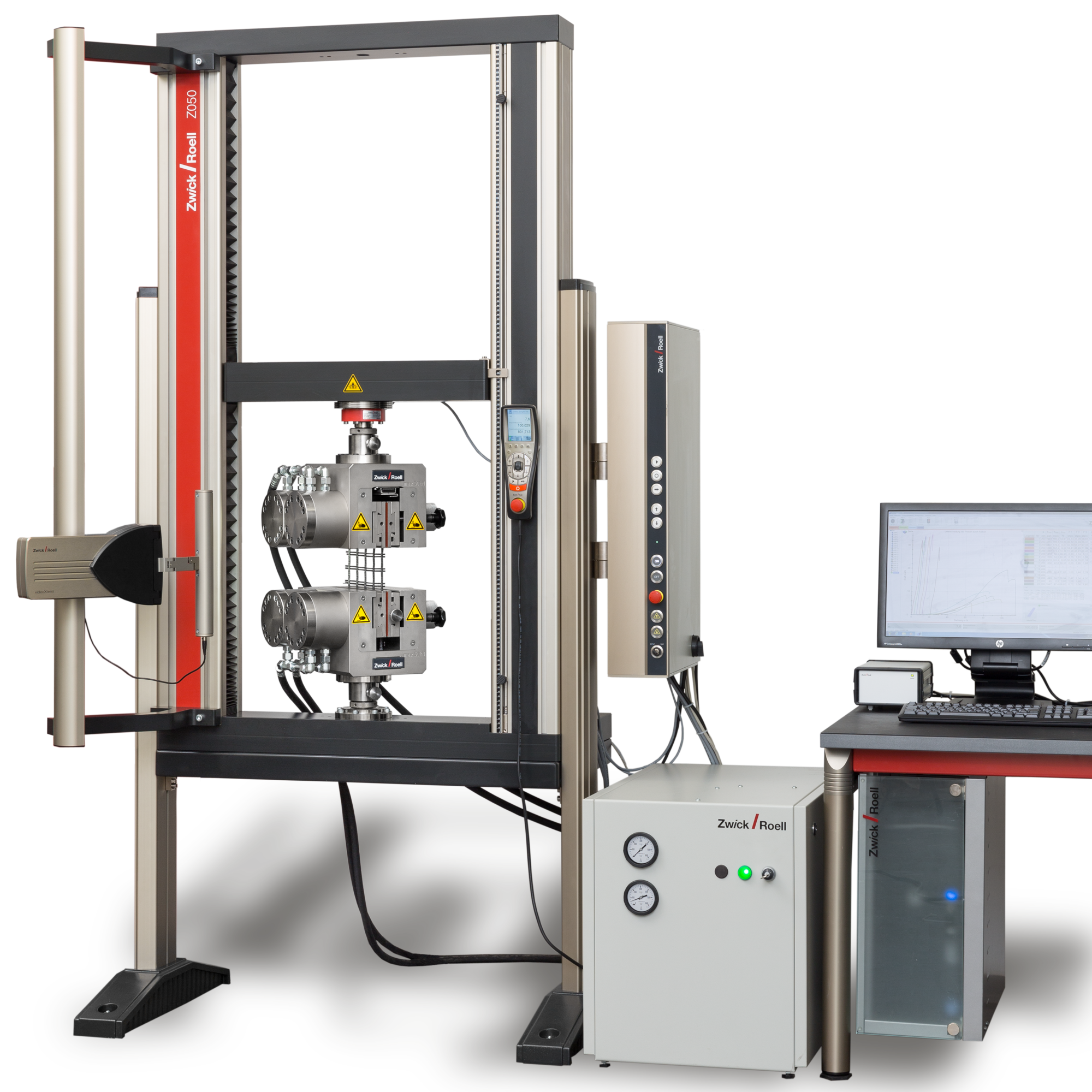

Used tensile tester Z050
Used tensile tester Z050
Used tensile tester Z050
Used tensile tester Z100
Ergonomics and operability are top priority with the AllroundLine Z100, and we achieve both through flexible adaptation of the work area thanks to adjustable support legs and low base height.
Whether for tensile testing, compression testing, flexure testing or shear, tear growth, adhesion or customer specific tests, the Z100 table-top testing machine can be used for any application.
Next to models Z010, Z020 or Z050, we have a constant inventory of used and refurbished Z100 AllroundLine testing machines for a force range up to 50 kN. Depending on the application, a used Z100 can be equipped with screw grips, pneumatic grips or hydraulic grips. A wide range of extensometers, from sensor-arm to non-contact, offers the right solution for your test requirements.
Z100 technical data
The Z100 is available in different heights and widths, and as a table-top or floor-standing machine. For tests starting at 100 kN, a wider test area is required. Thus, the TN and THN versions are only available for the Z005, Z010 and Z020 models. The wider test area also makes it easier to insert and test components and larger specimens.
| Z100 THW5) | Z100 TEW6) | Z100 SN7) | Z100 SW8) | Z100 SH9) | |
|---|---|---|---|---|---|
| Test load (kN) | 100 | 100 | 100 | 100 | 100 |
| Test area height (mm) | 1769 | 21669 | 1730* | 1695* | 2260* |
| Crosshead speed vmin ... vmax | 0.0001-1500 | 0.0001-1500 | 0.00005-1000 | 0.00005-1000 | 0.00005-1000 |
| Compliance (10-6 mm/N) | 14 | 15 | 16.6 | 17 | 5 |
| Stiffness (kN/mm) | 116 | 87 | 142 | 120 | 632 |
*dependent on whether the upper or lower test area is used
| 1) TN= table-top testing machine with standard test-area width and height |
| 2) TH= table-top testing machine with higher test area |
| 3)TE= table-top testing machine with extra high test area |
| 4)TNW= table-top testing machine with standard test-area height and wide width |
| 5) THW= table-top testing machine with high and wide test area |
| 6) TEW= table-top testing machine with extra high and wide test area |
| 7) SN= floor-standing testing machine with regular test area width and height |
| 8) SW= floor-standing testing machine with wide test area |
| 9) SH= floor-standing testing machine with high test area |
Used tensile tester Z100
Used tensile tester Z100
Used tensile tester Z100
From old to new
Allow us to future-proof your existing testing machine! A ZwickRoell modernization will return your current testing machine to state-of-the-art condition. Take advantage of the wide range of benefits that await and extend the service life of your machine for many more years in a sustainable manner.
Comprehensive range of accessories
Due to the modularity of the AllroundLine system and all accessory components, any accessory can be added to any used tensile tester, including the Z010, Z020, Z050 or Z100. In addition to specimen grips, test tools and extensometers, temperature chambers can also be easily integrated. Our accessories portfolio offers the right solution for any application.
