Metal Standards
ASTM and ISO standards for materials tests on metalsIn most cases, metals are tested according to a specific standard. Metal standards are important when it comes to consistency and comparability of results obtained from mechanical material tests on metals. They ensure that test methods are standardized and reproducible, so that the mechanical properties of these metals can be reliably evaluated. This is critical for quality assurance, research and development, material selection and design calculation purposes in many industries, including automotive, aerospace, construction, and more. Various national and international organizations, such as the International Organization for Standardization (ISO standards) and the American Society for Testing and Materials (ASTM standards), are responsible for creating and maintaining metal standards. Metal standards define parameters such as specimen geometries, the test process, as well as the test equipment and test settings.
The most important standards for mechanical materials tests on metals include:
- ASTM E8 / ISO 6892-1: these standards establish the test methods for tensile strength, yield strength, strain and reduction of the cross-sectional area of metals. They define the procedure for tensile tests on standardized metal specimens at room temperature and enable the determination of important mechanical properties. The ASTM E21 / ISO 6892-2 standards define the tensile test on metals at high temperatures.
- ASTM E23 / ISO 148-1: these standards cover the Charpy impact test method for metals. The test measures the strength and resistance of a material when subjected to impact loads.
- ASTM E399 / ISO 12135: These standards establish the method for determination of the crack initiation and crack growth resistance properties of metals.
- Hardness tests on metals are described in standards ISO 6508 / ASTM E18 (Rockwell), ISO 6507 / ASTM E92 (Vickers) and ISO 6506, ASTM E10.
Metals standards according to test type:
Tensile tests Compression tests and flexure tests Hardness tests Impact tests Fatigue tests & fracture mechanics Creep tests Deformation tests Calibration Specimen geometries
Metals standards according to segment:
Heavy plate Sheet metal and strips Thin sheets Bars and rods Sections and reinforcing steel Wires and cables Tubes Castings and forgings Fastening elements
Standardized materials testing with ZwickRoell testing machines for all segments of the metals industry
- Standardized setup of the testing machine
- Standard-compliant testing software
- Simple operation thanks to standard and custom pre-configurations
- Standard-compliant naming of test results
- Standard-compliant generation of test results/test reports
The metal standards specify the fundamental requirements for test methods used to determine characteristic values. ZwickRoell materials testing machines are optimally equipped to meet both these requirements, as well as individual customer specifications. Our testXpert testing software implements the basic conditions through test programs for all ASTM and ISO standards, in which the test sequence with important parameters from the standard is already specified and pre-configured or necessary variable parameters are specifically set by the operator.
Standards for tensile tests on metals
| Content | Standard | Example of test equipment |
|---|---|---|
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |

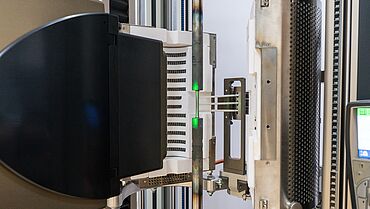

| Tensile test at elevated temperature | DIN EN ISO 6892-2, ASTM E21 | High-temperature testing machines |
| Tensile test at low temperature | ISO 15579, ISO 19819, ASTM E345 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on concrete-reinforcing steel | DIN 488, BS 4449, BS 4482, BS 4483, JIS G 3112, ISO 10606, ISO 15630, EN 10080 | Tensile testing machines from 330 kN |
| Tensile test on steel for reinforcement of concrete | PN-H-93220, SI 739, UNE 36065 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on steel strands and prestressing steel | EN 10138, BS 5896, ASTM A416 | Tensile testing machines from 330 kN |
| Tensile test on metallic foil | ASTM E345, DIN 50154 | zwickiLine |
| Determination of the work hardening coefficient (n-value) | ISO 10275 | AllroundLine Tensile testing machine from 330 kN |
| Determination of the vertical anisotropy (r-value) | ISO 10113 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on welded joints | DIN EN 895 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on chains | DIN 22252 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on screws, bolts and studs | ISO 898 | AllroundLine Tensile testing machine from 330 kN videoXtens |
| Shear test | DIN 50141, LN 65150 | AllroundLine Tensile testing machine from 330 kN |
Steel for the reinforcement of concrete - weldable reinforcing steel - bar, coil and decoiled product - specification | BS 4449 | AllroundLine Tensile testing machine from 330 kN |
Metal standards for compression tests and flexure tests
| Content | Standard | Example of test equipment |
|---|---|---|
| Testing of tubes | EN 10232, EN 10237, ISO 8491 | AllroundLine Tensile testing machine from 330 kN |
| Compression test | DIN 50106, ASTM E9 | AllroundLine Tensile testing machine from 330 kN |
| Compression test on hardmetals | DIN ISO 4506, EN 24506 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test (folding test) | DIN 50111 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on weld seams | DIN EN 910, ASTM E190, ASTM E290 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on sheet metals, 0.05 to 1 mm thick | DIN 50151 | zwickiLine AllroundLine |
| Flexure test on tubes and tube sections | DIN EN 1023, ISO 8492 | AllroundLine Tensile testing machine from 330 kN |
Steel for the reinforcement of concrete - weldable reinforcing steel - bar, coil and decoiled product - specification | BS 4449 | AllroundLine Tensile testing machine from 330 kN |
Metal standards for hardness testing
| Content | Standard | Example of test equipment |
|---|---|---|
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | Vickers tester |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | Rockwell hardness tester |
| Jominy end quench test / Jominy test | DIN EN ISO 642, ASTM A255 | |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
| Hardness testing in the aerospace industry | EN 2002-7 | Hardness testing machines |
| Leeb hardness test | ISO 16589, ASTM A965 | Hardness testing machines |
| Case hardness depth or CHD hardness | ISO 2639 | Vickers tester |
| Surface hardness depth SHD or effective hardening depth DS | DIN EN 10328 | Vickers tester |
| Nitriding hardness depth NHD | DIN 50190-3 | Vickers tester |
Metal standards for impact tests
| Content | Standard | Example of test equipment |
|---|---|---|
| Charpy impact test | DIN EN ISO 148-1, BS 131-6 | Pendulum impact testers |
| Notched Charpy impact test, instrumented test method | EN ISO 14556 | Pendulum impact testers |
| Notched bar impact test on metallic materials | ASTM E23 | Pendulum impact testers |
| Notched bar impact testing (Izod) | BS 131-1 | Pendulum impact testers |
| High-speed tensile test | DIN EN ISO 26203-2, SEP 1230 | High-speed testing machines |
| Drop weight test | DIN EN 10274 | Drop weight testers |
| Drop weight tear test on line pipe | APIRP 5L3 | Drop weight testers |
| Drop weight tear test on ferritic steels | ASTM E436 | Drop weight testers |
| Drop weight tests NIL ductility transition temperature of ferritic steels | ASTM 208 | Pellini drop weight tester |
Metal standards for fatigue tests and fracture mechanics tests
| Content | Standard | Example of test equipment |
|---|---|---|
| Fracture mechanics tests | ISO 12135, ASTM E399, ASTM E647 | Servohydraulic testing machines, Vibrophore |
| Rotating bar bending fatigue test | DIN 50113 | Rotating bend fatigue testing system |
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
| Fatigue test on screws | DIN 969, ISO 3800, MIL-STD-1312 | |
| Thermomechanical fatigue tests | ASTM E2368, ISO 12111, Validated Code-of-Practice for Thermo-Mechanical Fatigue Testing |
Metal standards for creep tests
| Content | Standard | Example of test equipment |
|---|---|---|
| Creep test under tensile loading | ISO 204 | Creep testing machines |
| Thermomechanical fatigue tests | ASTM E2368, ISO 12111, Validated Code-of-Practice for Thermo-Mechanical Fatigue Testing |
Standards for deformation tests on metals
| Content | Standard | Example of test equipment |
|---|---|---|
| Cupping tests | ISO 20482, ASTM E643, ISO 12004, ISO 16808, PV 1054 | Sheet metal testing machines |
| Earing tests | ISO 11531, DIN EN 1669, JIS Z 2249, Square cup, LDR, LDH, Engelhardt | Sheet metal testing machines |
| Hole expansion tests | ISO 16630, KWI | Sheet metal testing machines |
| Draw bead test | VDA 230/201 | Draw bead accessories |
Testing and calibrating test fixtures
| Content | Standard | Example of test equipment |
|---|---|---|
| Calibration of load cells | DIN EN ISO 7500-1, DIN EN ISO 376, ASTM E4 | Load cell / calibration |
| Calibration of extensometers | DIN EN ISO 9513, ASTM E83 | Extensometers / calibration |
| Direct and indirect calibration of pendulum impact testers | DIN 51222, DIN 51306, ASTM E23, DIN EN ISO 148-2 | Pendulum impact testers/ calibration |
Standards for metal specimen geometries
| Content | Standard | Example of test equipment |
|---|---|---|
| Tensile specimens | DIN 50125, JIS Z 2201, ASTM E8, DIN EN ISO 6892-1 | Machines for specimen production |
| Notched impact specimens (Charpy/Izod) | DIN EN ISO 148-1, ASTM E23 | |
| CT specimens | ASTM E647, ASTM E399 |
Standards for heavy plate
| Content | Standard | Example of test equipment |
|---|---|---|
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
| Tensile test at elevated temperature | DIN EN ISO 6892-2, ASTM E21 | High-temperature testing machines |
| Tensile test at low temperature | ISO 15579, ISO 19819, ASTM E345 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on welded joints | DIN EN 895 | AllroundLine Tensile testing machine from 330 kN |
Compression tests and flexure tests | ||
| Compression test | DIN 50106, ASTM E9 | |
| Compression test on hardmetals | DIN ISO 4506, EN 24506 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test (folding test) | DIN 50111 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on weld seams | DIN EN 910, ASTM E190, ASTM E29 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
Impact tests | ||
| Charpy impact test | DIN EN ISO 148-1, ASTM E23, BS 131-6 | Pendulum impact testers |
| Notched Charpy impact test, instrumented test method | DIN EN ISO 14556 | Pendulum impact testers |
| Izod impact test | ASTM E23, BS 131-6 | Pendulum impact testers |
| Drop weight tear test on line pipe | APIRP 5L3 | Drop weight testers |
| Drop weight tear test on ferritic steels | ASTM E436 | Drop weight testers |
| Drop weight tests NIL ductility transition temperature of ferritic steels | ASTM 208 | Pellini drop weight tester |
Fatigue tests and fracture mechanics tests | ||
| Fracture mechanics tests | ISO 12135, ASTM E399, ASTM E647, ASTM E813 | Servohydraulic testing machines, Vibrophore |
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
Standards for sheet metal and strips
| Content | Standard | Example of test equipment |
|---|---|---|
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
| Tensile test at elevated temperature | DIN EN ISO 6892-2, ASTM E21 | High-temperature testing machines |
| Tensile test at low temperature | ISO 15579, ISO 19819, ASTM E345 | AllroundLine Tensile testing machine from 330 kN |
| Determination of the work hardening coefficient (n-value) | ISO 10275 | AllroundLine Tensile testing machine from 330 kN |
| Determination of the vertical anisotropy (r-value) | ISO 10113 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on welded joints | DIN EN 895 | AllroundLine Tensile testing machine from 330 kN |
| Shear test | DIN 50141, LN 65150 | AllroundLine Tensile testing machine from 330 kN |
Compression tests and flexure tests | ||
| Compression test | DIN 50106, ASTM E9 | |
| Compression test on hardmetals | DIN ISO 4506, EN 24506 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test (folding test) | DIN 50111 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on weld seams | DIN EN 910, ASTM E190, ASTM E29 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
Impact tests | ||
| Charpy impact test | DIN EN ISO 148-1, ASTM E23, BS 131-6 | Pendulum impact testers |
| Notched Charpy impact test, instrumented test method | DIN EN ISO 14556 | Pendulum impact testers |
| Izod impact test | ASTM E23, BS 131-6 | Pendulum impact testers |
| High-speed tensile test | DIN EN ISO 26203-2, SEP 1230 | High-speed testing machines |
| Drop weight test | DIN EN 10274 | Drop weight testers |
Fatigue tests and fracture mechanics tests | ||
| Fracture mechanics tests | ISO 12135, ASTM E399, ASTM E647, ASTM E813 | Servohydraulic testing machines, Vibrophore |
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
Creep tests | ||
| Creep test on metals | ISO 204 | Creep testing machines |
Deformation tests | ||
| Cupping tests | ISO 20482, ASTM E643-84, ISO 12004, ISO 16808, PV 1054 | Sheet metal testing machines |
| Earing tests | ISO 11531, DIN EN 1669, JIS Z 2249, Square cup, LDR, LDH, Engelhardt | Sheet metal testing machines |
| Hole expansion tests | ISO 16630, KWI | Sheet metal testing machines |
Standards for thin sheets
| Content | Standard | Example of test equipment |
|---|---|---|
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | zwickiLine AllroundLine makroXtens |
| Tensile test at elevated temperature | DIN EN ISO 6892-2, ASTM E21 | High-temperature testing machines |
| Tensile test at low temperature | ISO 15579, ISO 19819, ASTM E345 | zwickiLine AllroundLine |
| Determination of the work hardening coefficient (n-value) | ISO 10275 | zwickiLine AllroundLine |
| Determination of the vertical anisotropy (r-value) | ISO 10113 | zwickiLine AllroundLine |
Compression tests and flexure tests | ||
| Flexure test on sheet metals, 0.05 to 1 mm thick | DIN 50151 | zwickiLine AllroundLine |
| Small plate bending test | VDA 238-100 | |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
Impact tests | ||
| High-speed tensile test | DIN EN ISO 26203-2, SEP 1230 | High-speed testing machines |
Deformation tests | ||
| Cupping tests | ISO 20482, ASTM E643-84, ISO 12004, ISO 16808, PV 1054 | Sheet metal testing machines |
| Earing tests | ISO 11531, DIN EN 1669, JIS Z 2249, Square cup, LDR, LDH, Engelhardt | Sheet metal testing machines |
| Hole expansion tests | ISO 16630, KWI | Sheet metal testing machines |
| Draw bead tests | VDA 230/201 | Draw bead accessories |
Standards for bars and rods
| Content | Standard | Example of test equipment |
|---|---|---|
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
| Tensile test at elevated temperature | DIN EN ISO 6892-2, ASTM E21 | High-temperature testing machines |
| Tensile test at low temperature | ISO 15579, ISO 19819, ASTM E345 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on welded joints | DIN EN 895 | AllroundLine Tensile testing machine from 330 kN |
Compression tests and flexure tests | ||
| Compression test | DIN 50106, ASTM E9 | |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test (folding test) | DIN 50111 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on weld seams | DIN EN 910, ASTM E190, ASTM E29 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardenability of steel: Jominy test / Jominy end quench test | DIN EN ISO 642, ASTM A255 | ZHR Durajet G5 |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
Impact tests | ||
| Charpy impact test | DIN EN ISO 148-1, ASTM E23, BS 131-6 | Pendulum impact testers |
| Notched Charpy impact test, instrumented test method | DIN EN ISO 14556 | Pendulum impact testers |
| Izod impact test | ASTM E23, BS 131-6 | Pendulum impact testers |
Fatigue tests and fracture mechanics tests | ||
| Fracture mechanics tests | ISO 12135, ASTM E399, ASTM E647, ASTM E813 | Servohydraulic testing machines, Vibrophore |
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Rotating bar bending fatigue tests | DIN 50113 | Rotary bending machines |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
Creep tests | ||
| Creep test on metals | ISO 204 | Creep testing machines |
Standards for sections and reinforcing steel
| Content | Standard | Example of test equipment |
|---|---|---|
| Testing of concrete-reinforcing steel | ISO 15630-1, ASTM E488, BS 4449 | Tensile testing machine from 330 kN |
| Testing of welded fabric and lattices | ISO 15630-2 | Tensile testing machine from 330 kN |
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
| Tensile test on welded joints | DIN EN 895 | AllroundLine Tensile testing machine from 330 kN |
| Shear test | DIN 50141, LN 65150 | AllroundLine Tensile testing machine from 330 kN |
Compression tests and flexure tests | ||
| Compression test | DIN 50106, ASTM E9 | |
| Compression test on hardmetals | DIN ISO 4506, EN 24506 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test (folding test) | DIN 50111 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on weld seams | DIN EN 910, ASTM E190, ASTM E29 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
Fatigue tests and fracture mechanics tests | ||
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
Standards for wire and cable
| Content | Standard | Example of test equipment |
|---|---|---|
| Testing of Steel Strands | ISO 15630-3 | Tensile testing machine from 330 kN |
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
Compression tests and flexure tests | ||
| Compression test | DIN 50106, ASTM E9 | |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test (folding test) | DIN 50111 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
Fatigue tests and fracture mechanics tests | ||
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Rotating bar bending fatigue tests | DIN 50113 | Rotary bending machines |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
Standards for tubes
| Content | Standard | Example of test equipment |
|---|---|---|
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
| Tensile test at elevated temperature | DIN EN ISO 6892-2, ASTM E21 | High-temperature testing machines |
| Tensile test at low temperature | ISO 15579, ISO 19819, ASTM E345 | AllroundLine Tensile testing machine from 330 kN |
| Ring tensile test | ISO 8496, DIN 50138, ASTM A370 | AllroundLine Tensile testing machine from 330 kN |
| Tensile test on welded joints | DIN EN 895 | AllroundLine Tensile testing machine from 330 kN |
Compression tests and flexure tests | ||
| Compression test | DIN 50106, ASTM E9 | |
| Tube-flattening test | ISO 8492, DIN 50136, ASTM A370, API 5L | AllroundLine Tensile testing machine from 330 kN |
| Drift-expanding test | ISO 8493, DIN 50135, ASTM A370 | AllroundLine Tensile testing machine from 330 kN |
| Flanging test | ISO 8494, DIN 50139, ASTM A370 | AllroundLine Tensile testing machine from 330 kN |
| Ring-expanding test | ISO 8495, DIN 50137, ASTM A370 | AllroundLine Tensile testing machine from 330 kN |
| Compression test on hardmetals | DIN ISO 4506, EN 24506 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test (folding test) | DIN 50111 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on weld seams | DIN EN 910, ASTM E190, ASTM E29 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
Impact tests | ||
| Drop weight tear test on line pipe | APIRP 5L3 | Drop weight testers |
| Drop weight tear test on ferritic steels | ASTM E436 | Drop weight testers |
| Drop weight tests NIL ductility transition temperature of ferritic steels | ASTM 208 | Pellini drop weight tester |
Fatigue tests and fracture mechanics tests | ||
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
Creep tests | ||
| Creep test on metals | ISO 204 | Creep testing machines |
Hydrogen influence | ||
| Hydrogen embrittlement of high-strength metallic materials | ASTM F519, ASTM F1624 | Creep testing machines |
Standards for castings and forgings
| Content | Standard | Example of test equipment |
|---|---|---|
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
| Tensile test at elevated temperature | DIN EN ISO 6892-2, ASTM E21 | High-temperature testing machines |
| Tensile test at low temperature | ISO 15579, ISO 19819, ASTM E345 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
Impact tests | ||
| Charpy impact test | DIN EN ISO 148-1, ASTM E23, BS 131-6 | Pendulum impact testers |
| Notched Charpy impact test, instrumented test method | DIN EN ISO 14556 | Pendulum impact testers |
| Izod impact test | ASTM E23, BS 131-6 | Pendulum impact testers |
Fatigue tests and fracture mechanics tests | ||
| Fracture mechanics tests | ISO 12135, ASTM E399, ASTM E647, ASTM E813 | Servohydraulic testing machines, Vibrophore |
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Rotating bar bending fatigue tests | DIN 50113 | Rotary bending machines |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
Creep tests | ||
| Creep test on metals | ISO 204 | Creep testing machines |
Standards for fastening elements
| Content | Standard | Example of test equipment |
|---|---|---|
| Testing of Threaded Fasteners | ISO 898-1, ISO 3506-1, ASTM F606 | AllroundLine Tensile testing machine from 330 kN |
| Fatigue tests on screws | DIN 969, ISO 3800, MIL-STD-1312 | Vibrophore |
| Testing of nuts / washers | ISO 898-2, ISO 3506-2, ASTM F606-2 | AllroundLine Tensile testing machine from 330 kN |
Tensile tests | ||
| Tensile test at ambient temperature | DIN EN ISO 6892-1, API 5L, JIS Z 2241, BS 18, ASTM A370, ASTM E8 | AllroundLine Tensile testing machine from 330 kN makroXtens |
| Tensile test on welded joints | DIN EN 895 | AllroundLine Tensile testing machine from 330 kN |
Compression tests and flexure tests | ||
| Compression test | DIN 50106, ASTM E9 | |
| Compression test on hardmetals | DIN ISO 4506, EN 24506 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test | ISO 7438, JIS Z 2248, JIS Z 2204 | AllroundLine Tensile testing machine from 330 kN |
| Flexure test on weld seams | DIN EN 910, ASTM E190, ASTM E29 | AllroundLine Tensile testing machine from 330 kN |
Hardness testing | ||
| Hardness testing to Vickers | DIN EN ISO 6507, ASTM E92 | ZHVµ ZHV30 ZHV30/zwickiLine ZHV10 |
| Hardness testing to Brinell | DIN EN ISO 6506, ASTM E10 | ZHU250CL ZHU250 ZHV30 ZHU/zwickiLine+ |
| Hardness testing to Rockwell | DIN EN ISO 6508, ASTM E18 | ZHR8150CLK ZHR |
| Hardness testing to Knoop | ISO 4545, ASTM E384 | DuraVision 20/30/200/300 G5 DuraVision 250/350 G5 ZHV30 |
| Hardness testing to Martens | EN ISO 14577 | Hardness testing machines |
| Hardness testing on welded joints | EN 1043 | Hardness testing machines |
Impact tests | ||
| Drop weight tear test on line pipe | APIRP 5L3 | Drop weight testers |
| Drop weight tear test on ferritic steels | ASTM E436 | Drop weight testers |
| Drop weight tests NIL ductility transition temperature of ferritic steels | ASTM 208 | Pellini drop weight tester |
Fatigue tests and fracture mechanics tests | ||
| Fatigue test (to Woehler) | DIN 50100 | Servohydraulic testing machine |
| Fatigue test under strain control | ASTM E606 | Vibrophore |
| Fatigue tests on threaded fasteners | DIN 969, ISO 3800, MIL-STD-1312 | Vibrophore |
Creep tests | ||
| Creep test on metals | ISO 204 | Creep testing machines |
