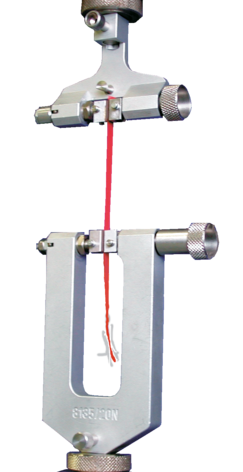

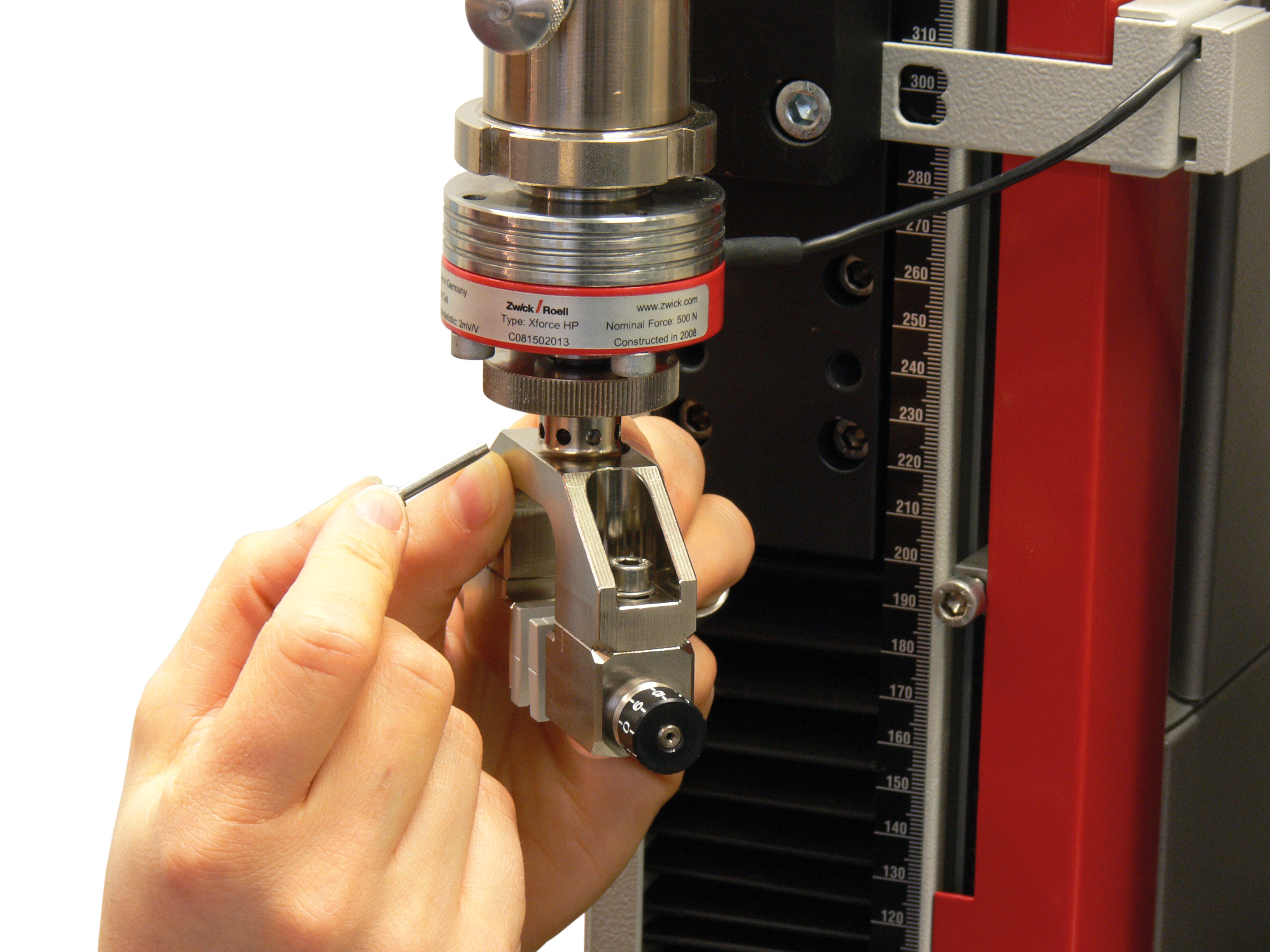

The specimen grip for tests involving very low forces
Their weight is sufficiently low in relation to the nominal force of the attached load cell as to impose no restrictions on the force measurement range of the load cell. The gripping force is generated by a spring. The spring force can be preset, allowing clamping-sensitive materials to always be tested using the same gripping force.
Technical overview
Item No. | 313324 | |
Type | 8135 | |
Test load Fmax | 0.02 | kN |
Dimensions | ||
Height | ||
Specimen grip, upper | 52 | mm |
Specimen grip, lower | 102 | mm |
Width Without clamping screw | 56 | mm |
Depth | ||
Without clamping screw | 12 | mm |
With clamping screw | 17 | mm |
Adjustability of the opposing jaw | None | |
Opening width, max. with jaws | 1 | mm |
Gripping of the specimen | The specimen must be gripped with the entire height of the jaw. | |
Weight | ||
Specimen grip, upper | 0.06 | kg |
Specimen grip, lower | 0.08 | kg |
Specimen dimensions | ||
Flat specimen, thickness | 0 ... 1 | mm |
Round specimen, Ø | 0 ... 1 | mm |
Gripping area | ||
Height | 10 | mm |
Width | 5 | mm |
Connection, stud | Ø 8 | mm |
Ambient temperature | -15 ... +80 | °C |
Scope of delivery | 2 | pieces |
Type | 8125 | 8125 | |
Item No. | 318674 | 318676 | |
Test load Fmax | 0.05 | 0.05 | kN |
Gripping force | 82 | N | |
Adjustability of the opposing jaw | Stepless, 4 | Stepless, 4 | mm |
Dimensions | |||
Height | 80 | 80 | mm |
Width | |||
Without clamping screw | 77 | 77 | mm |
With clamping screw | 218 | 218 | mm |
Depth | |||
Without clamping screw | 60 | 60 | mm |
With clamping screw | 155 | 155 | mm |
Opening width, max. with jaws | 8 | 8 | mm |
Gripping of the specimen | The specimen must be gripped with the entire height of the jaw. | ||
Weight per specimen grip, approx. | 0.35 | 0.35 | kg |
Connection, stud | Ø 8 | Ø 8 | mm |
Ambient temperature | 0 ... 80 | 0 ... 80 | °C |
Scope of delivery | 2 | 1 | pieces |
Jaws supplied | |||
Surface | Vulkollan, smooth | Vulkollan, smooth | |
Gripping area | |||
Height | 30 | 30 | mm |
Width | 60 | 60 | mm |
Hardness | 95 Shore A | 95 Shore A |
